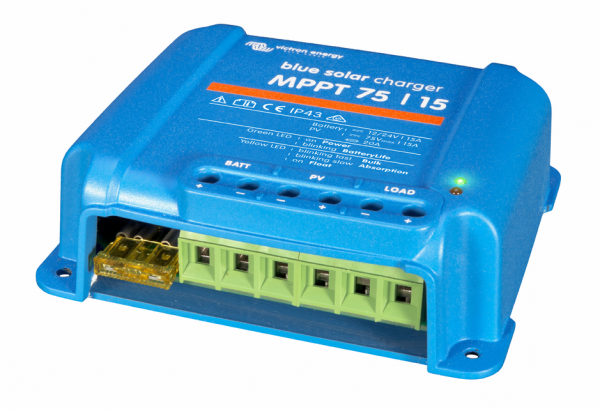

The Victron Energy BlueSolar MPPT 75/10, 75/15 & 100/15 is a great choice for controlling up to 200 watts of solar panels at 12 volts, or 400 watts of panels at 24 volts, with maximum open circuit voltage of 75 volts. It automatically selects between 12 and 24 volts on the output. This model is popular for sailboats and RVs, benefiting from small size, simple operation, robust corrosion and vibration protection, and ultra-high efficiency.
Victron has been building power systems for over 40 years, and has a worldwide reputation for innovation, reliability, and quality. They serve the marine, vehicle, and off-grid markets, and are based in the Netherlands. We’re hard-pressed to find anyone that matches Victron for quality.
Besides great build quality and a 5-year warranty, the Victron Energy BlueSolar MPPT 75/10, 75/15 & 100/15 has a number of unique features:
All Victron MPPT charge controllers can be monitored and controlled with the MPPT Control remote, or with the Color Control GX Panel, which can connect with almost all Victron battery chargers, inverters, and battery monitors. The Victron Bluetooth Dongle can be used for graphical presentation of real-time and historical data. Setup can also be done on your smart phone, tablet, or Mac through the free downloadable app. The BlueSolar MPPT 75/15 can be configured and can operate at full potential without a display, so the panel is strictly optional.
Features a multi-stage adaptive charge algorithm that is good for most flooded and AGM batteries. Custom settings can also also be programmed with an available VE.Direct cable and a Windows PC (details are at this page) or the MPPT Control remote. Or, we will be happy to program it for you. Over-temperature protection and power de-rating when temperature is high.
Electronic components are resin encapsulated to protect against the elements.
A unique feature of this controller is a load output terminal.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby – you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.
The intelligent Load output function prevents damage caused by running batteries ‘flat’. You can configure the voltage at which BlueSolar disconnects a load – thereby preventing excessive drain on your batteries. And here’s the clever bit: BlueSolar will attempt a 100% recharge every day. If it can’t – during periods of poor weather – it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.
- Bluetooth enabled (Bluetooth dongle needed)
- Day/night timing and light dimming option
- Ultra-fast Maximum Power Point Tracking (MPPT)
- BatteryLife: intelligent battery management
- Load Output
