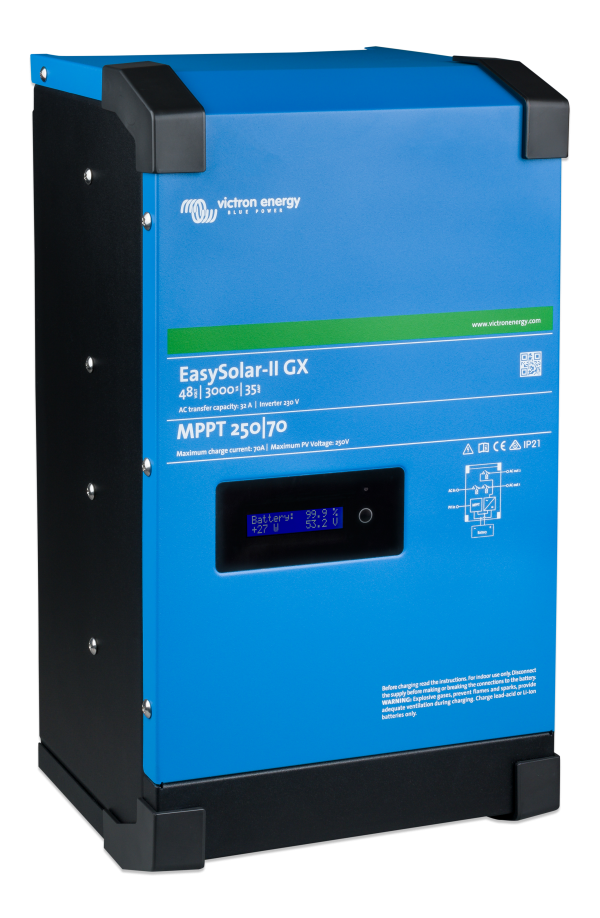

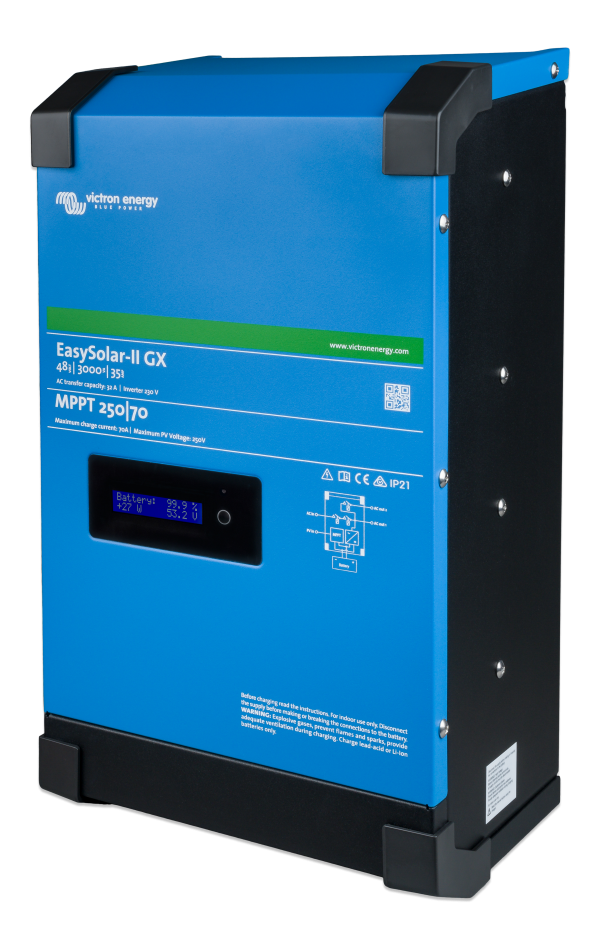

The EasySolar-II GX combines a MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.
The all-in-one solar power solution
The Victron EasySolar-II GX integrates the following elements:
• A MultiPlus-II inverter/charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16 character display.
These elements come prewired together inside a single unit. This greatly simplifies
most installations, saving time and money.
Display and wifi
The display reads battery, inverter and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other wifi enabled device.
In addition, wifi can be used to set up the system and to change settings.
Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the
The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

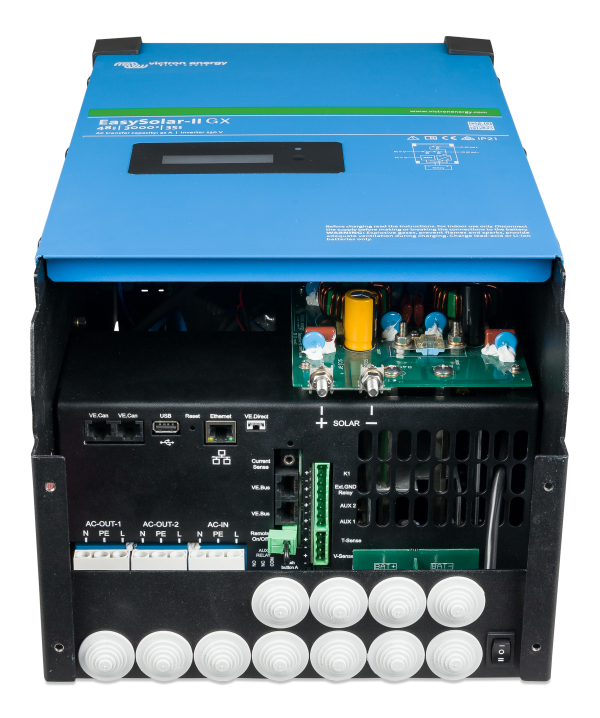

The integrated GX device includes:
• A VE.Can interface. This can be used to connect to Victron VE.Can devices (e.g.
VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use
with a compatible CAN-bus Li-ion Battery
• A USB port
• A Ethernet port
• A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a
VE.Bus and a VE.Direct connection.
Grid in-line topology
The EasySolar-II GX will use excess PV power to charge the
batteries or to feed power back into the grid and will discharge
the battery or use power from the grid to supplement a
shortage of PV power. In case of a power outage, the
PowerControlwill disconnect the grid and continue to supply
Loads that should shut down when AC input power is not
available can be connected to a second output (not shown).
These loads will be taken into account by the PowerControl
and PowerAssist function in order to limit AC input current to a safe value
